Product Code : 7004

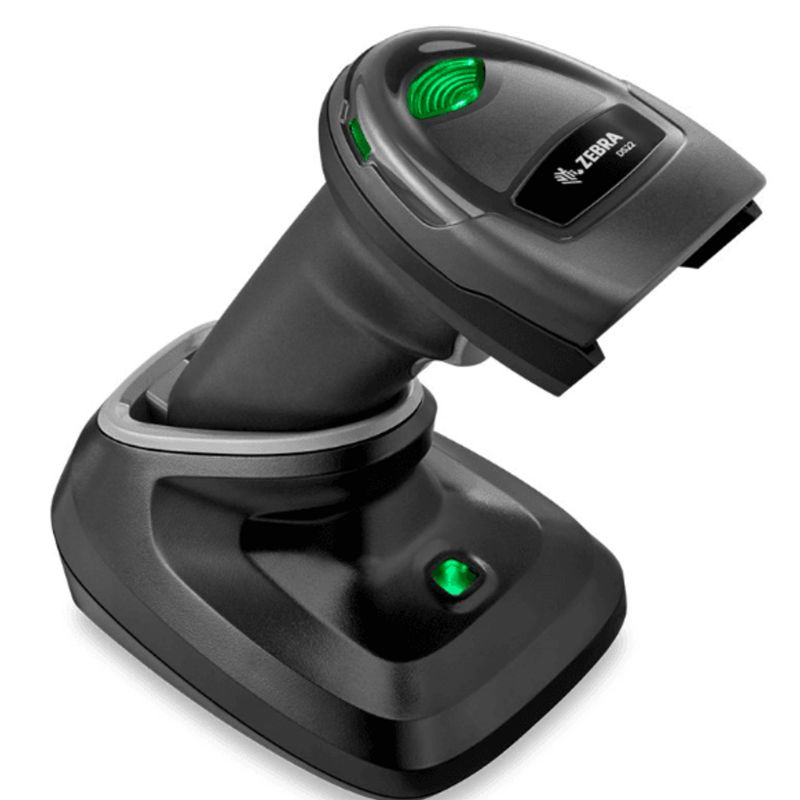

Product Type | Cordless Barcode Scanner |
Scan Speed | Swipe Speed (Hands-Free) : Up to 30.0 in./76.2 cm. per second for 13 mil UPC |
Resolution | : Code 39 – 4.0 mil; Code 128 – 4.0 mil; Data Matrix – 6.0 mil; QR Code – 6.7 mil |
Sensors | Image Sensor : 640 x 480 pixels |
Illumination System | 645nm Super-Red LEDs |
Light Source | Aiming Pattern: Linear 624nm Amber LED |
Contrast | 25% minimum reflective difference |
Control Panel | Direct Decode Indicator; good decode LEDs; Rear view LEDs; beeper (adjustable tone and volume) |
Body Color | Nova White or Twilight Black |
Interface | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
Input Voltage | 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
Environment | Rated at 250 Watts |
Environment | Storage Temperature -40.0° to 158.0° F/-40.0° to 70.0° C ; Humidity : 5% to 95% RH, non-condensing ; Drop Specifiation : Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete ; Tumble Specifiation : Designed to withstand 250 tumbles in 1.5 ft. |
Safety | Electrical Safety : EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950- 1-07 ; Environmental : RoHS EN 50581 ; LED Safety : IEC 62471 ; IT Emissions : EN 55032 (Class B) ; IT Immunity : EN 55024 ; Ha |
Battery | Type & Capacity: 2,400 mAh Li-Ion Battery |
Max Battery Operation Time | Scans Per Battery Charge : 110,000 scans at 60 Scans per Minute or 50,000 scans at 10 Scans per Minute ; Operating Time Per Full Charge : 84.0 Hours |
Included Accessories | CR2278 Presentation Cradle, Spare Battery, Micro USB Cable |
Dimension | (HxWxD) 6.9 x 2.6 x 3.5 in |
Weight | 7.5 oz. / 214 g |
